Aviation guys!! Need information about a David Clark headset

Ok, so I'm trying to make a patch cord out of the wire from an old David Clark headset (model H10-76). I need to know which wires inside the main wire go to which points on the plug.

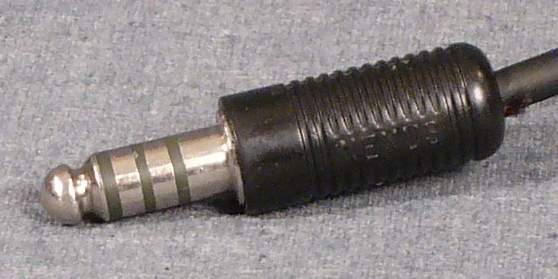

Plug looks like this:



From base to tip I THINK it's ground, audio out, audio in (mic), power

i've got a complete headset somewhere at home if you'd like to take it off of my hands.
it's from my Marine Corps C-130 days.

edit: reading fail. do you need some pix of my plug? the cap on the plug should unscrew.

don't need the headset, got a donor in hand already, i just need confirmation on the wiring layout before i solder everything together. unfortunately my access to test equipment is somewhat limited on the ground.

Quote: Originally Posted by Napoleon_Tanerite... don't need the headset, got a donor in hand already, i just need confirmation on the wiring layout before i solder everything together. unfortunately my access to test equipment is somewhat limited on the ground.

yea, i totally misread it. sorry.

hey no problem, i do appreciate the offer though!

ETA: also read your edit; however, that doesn't help me. I unscrewed the cap on mine and it doesn't tell me much-- all the wires are connected to different points that go "somewhere" into the tip of the plug, but i can't tell where they come out

Hey Napolean....try the nice gents at http://www.jetcareers.com

Quite a few military members too...

did he say "from base to tip?" LOLZ
